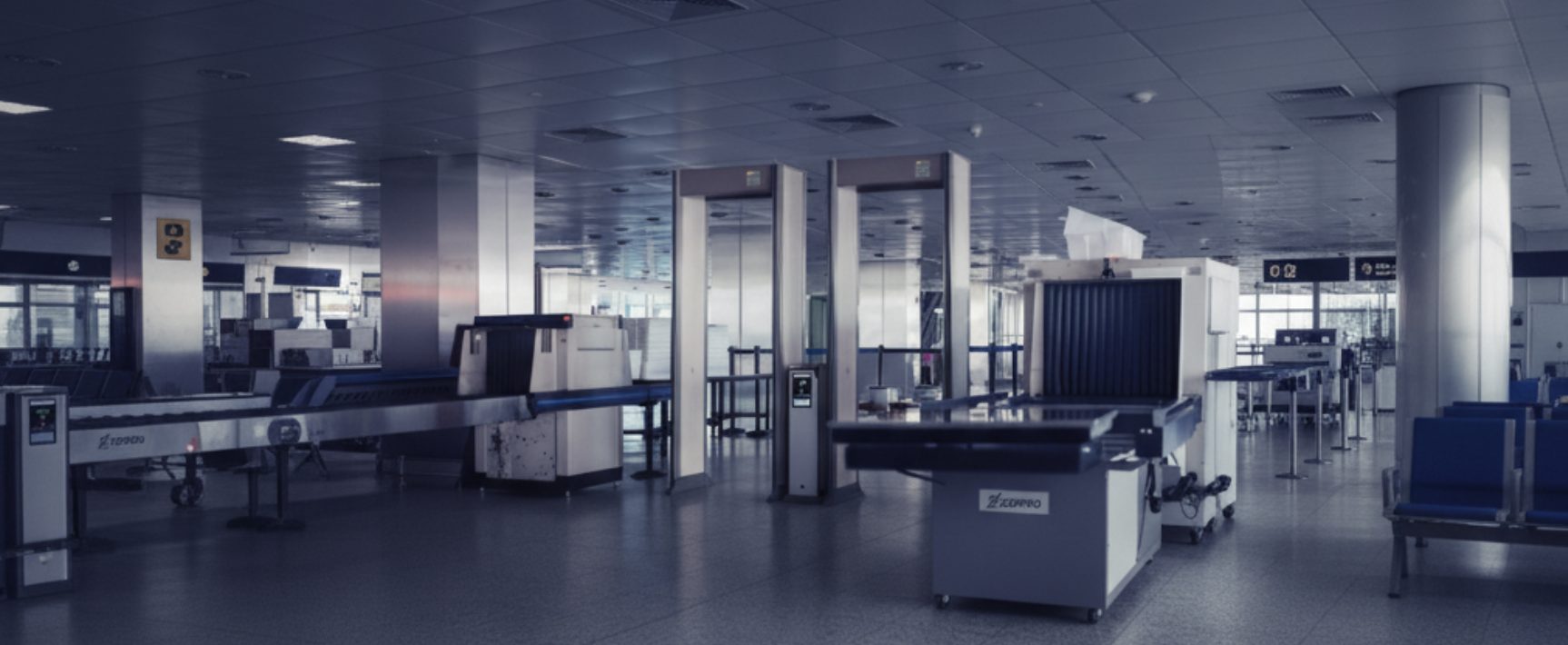

How to Set Up a Walk Through Metal Detector: Installation Guide

Setting Up a Walk Through Metal Detector: Overview

Setting up a walk-through metal detector is more straightforward than most buyers expect. There’s no special electrical work, no permits, and no contractor required. A standard archway can be assembled and operational in approximately 30–60 minutes — all you need is a standard 110V power outlet and two people to lift the panels.

PTI has helped hundreds of schools, courthouses, and event venues get their detectors up and running. This guide covers the complete setup process, from unboxing to screening your first person.

Before You Start: What’s in the Box

Most walk-through metal detectors ship in 2–3 boxes and include:

• Left panel (transmitter side)
• Right panel (receiver side)
• Base stabilizer bars
• Top connecting bar/arch
• Interconnect cables (between panels)
• Power cord
• Control panel or display unit
• Mounting hardware (bolts, Allen wrenches)
• User manual and calibration guide

Verify all components are present before starting. If anything is missing, contact PTI immediately — do not proceed with an incomplete unit.

Tools you’ll need: None beyond what’s included. The Allen wrenches provided handle all panel connections.

Step 1: Choose Your Location

Location is the most important setup decision. A poorly placed detector generates constant false alarms; a well-placed one operates quietly and reliably.

Clearance Requirements

• Side clearance: At least 18–24 inches on each side of the archway (for people to queue without being in the detection field)
• Height clearance: Standard archways are 80–84 inches tall; ceiling or overhead obstruction should be at least 90 inches
• Front/back clearance: At least 3 feet on each side of the archway before people enter or after they exit

Interference Sources to Avoid

Walk-through detectors are sensitive to electromagnetic interference. Keep the archway at least 3 feet away from:

• Large metal doors or door frames
• Reinforced concrete walls (rebar creates interference)
• HVAC units, motors, generators
• Electrical panels and wiring runs
• Other metal detectors (running two archways side-by-side requires special synchronization)

ADA Compliance

If your facility serves the public, ADA requires an accessible screening path. This typically means maintaining a clear lane of at least 32 inches in width for wheelchairs. Many facilities configure a bypass lane with a handheld wand screening protocol for those who cannot pass through the archway.

Step 2: Assemble the Archway

1. Position the base plates: Lay the base stabilizer bars on the floor at the correct width for the archway model (consult the manual for exact dimensions).
2. Attach the side panels to the base: Stand each panel upright on its base plate and insert the anchor bolts. Do not fully tighten yet — you need alignment flexibility.
3. Connect the top bar: Lift the top connecting bar into position and secure it to both panels. This typically uses a sliding channel with set screws.
4. Run the interconnect cables: Route the shielded cables between the two panels per the manual diagram. These carry the signal between transmitter and receiver and are critical — damage to these cables causes false alarms.
5. Tighten all fasteners: Once aligned, tighten all bolts and set screws to specification.

Two-person job: The side panels are typically 50–80 lbs each. Have a second person hold a panel upright while you secure the base. Attempting solo assembly risks dropping panels and damaging components.

Step 3: Power On and Boot

1. Plug the power cord into a standard 110V grounded outlet.
2. Switch the power on (typically a rocker switch on the control panel).
3. Allow 30–60 seconds for the system to initialize and self-test. Most units display a startup sequence on the control panel.
4. Confirm both panels are communicating — the display should show “Ready” or a green status indicator.

Do not stand inside the archway during power-on. The initial electromagnetic field calibration requires an empty archway.

Step 4: Calibrate Sensitivity

Sensitivity calibration is the process of setting the detection threshold so the detector alarms on threats while ignoring everyday items. This is the most time-consuming part of setup — budget 15–20 minutes.

1. Start at manufacturer’s recommended default (noted in the manual — typically a mid-range setting)
2. Test with known items: Have a staff member walk through with a set of keys, a belt with a metal buckle, and a cell phone. These should ideally NOT trigger an alarm (unless sensitivity is intentionally set very high).
3. Test with threat items: Walk through with a simulated threat (an unloaded training firearm or large metal object) and confirm it alarms consistently.
4. Adjust and repeat until the balance is correct for your environment.
5. Document your settings — write the final sensitivity values on a card kept at the checkpoint for daily reference.

Pro tip: Environmental conditions can shift slightly day to day. Brief recalibration at the start of each operational day is good practice, especially in facilities with heavy HVAC systems.

Step 5: Configure Detection Zones

Zorpro Models (Touchscreen)

Zorpro 18 Zone and 33 Zone models feature a color touchscreen that displays real-time zone maps. When the detector alarms, the touchscreen highlights the specific zone(s) where metal was detected — giving security officers instant body-location information.

Configure zone-specific sensitivity through the touchscreen menu: Security → Zone Config → adjust individual zones if needed. In most installations, uniform sensitivity across all zones is appropriate.

Garrett Models

The Garrett PD 6500i and MZ 6100 use an LED zone indicator panel and button-based controls. Zone configuration is accessed through a menu accessed by holding the SELECT button during startup. Refer to the Garrett programming manual for step-by-step zone configuration — sensitivity can be set per-zone, which is important for facilities with officers who have hip or ankle implants.

Step 6: Train Your Staff

A properly calibrated detector is only as good as the officers operating it. Staff training should cover:

• Reading the zone display: What a zone alarm means and where on the body to focus secondary screening
• Handheld wand technique: How to properly conduct secondary screening (maintain consistent distance, move at consistent speed)
• ADA protocols: How to handle wheelchair users, people with implants, and others who cannot use the archway
• Sensitivity adjustments: Who is authorized to change settings and the process for doing so
• Emergency procedures: What to do if someone refuses screening, if a credible threat is detected, or if the unit malfunctions

Common Setup Mistakes

• Placing the archway too close to a metal door frame: Results in constant false alarms. Move it at least 3 feet from any large metal structure.
• Running two archways side by side without sync cables: Adjacent detectors interfere with each other. Use the sync cable (included with multi-lane kits) to coordinate their pulse timing.
• Setting sensitivity too high: Everyone alarms, officers get fatigued, throughput collapses. Start lower and work up.
• Not documenting settings: When someone accidentally resets the unit, you’ll have no reference for recalibration.
• Skipping daily calibration checks: Environmental conditions shift. A 2-minute daily check prevents bad surprises.

Troubleshooting Common Issues

Frequently Asked Questions

Do I need an electrician to install a walk through metal detector?

No. Walk-through detectors use standard 110V power — just plug them in. No hardwiring or licensed electrician required.

Can I install a walk through metal detector outdoors?

Most walk-through detectors are rated for indoor use. Some models (including the Garrett MZ 6100) offer weather-resistant enclosures for semi-outdoor use, but avoid direct rain or extreme temperatures. PTI can advise on outdoor-rated models.

How many people does it take to set up a walk through metal detector?

Minimum two people for panel assembly (panels are heavy). One experienced person and one helper is the typical setup crew. Plan for 30–60 minutes of setup time.

How often should I calibrate my walk through metal detector?

At minimum, a daily function check (walk through with a known metal item) is recommended. Full sensitivity recalibration may be needed after moving the unit, seasonal HVAC changes, or after any electrical work nearby.
